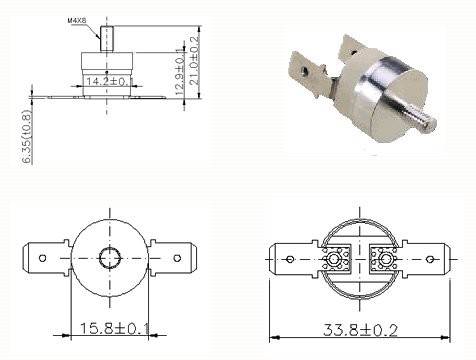

Safety thermostats A-7



SPECIFICATION Electrical rating: AC 250 V/ 10A resistive load AC 125V/15A resistive load Operating Temperature :A68/B68: 45~185℃ M68:60~165℃ C68:60~240℃ response temperature: M68:Less then5℃ A68/B68/C68:Min.10,normal 15~25℃ Tolerance: OFF:less than ±3℃ ON:standard ±5℃ Dielectric strength :AC 1,500V for 1min.AC1,800V for 1second. Contact Resistance :Less than 50mΩ Heat Resistance:240℃
