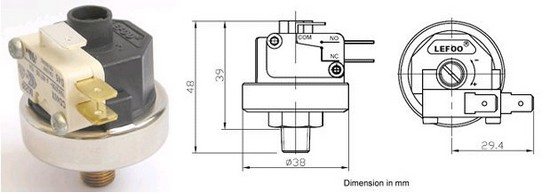

Pressure switch



Specification Model L-25 Medium Non hazardous gas, liquid or steam Operating Pressure 0.2-0.6 bar 0.5-1.5Bar 1.2-2.5bar 1.5-4bar 3-7bar 5-9bar Proof Pressure 3bar 4bar 5bar 6bar 8bar 10bar Differential 0.2±0.1bar 0.2±0.1bar 0.2±0.1bar 0.25±0.15bar 0.35±0.20bar 0.6±0.20bar Operating Temperature Range +85℃ / +125℃ Maximum Contact Arrangement SPST or SPDT Electric Rating SPST or SPDT/ Normal Close: 16(4) A-250VAC; Other ratings are available on request Terminals 6.35 or 4.88mm male Q.C. ; Insulation cover available as necessary Connection NPT 1/8-27 or NPT1/4-18 male, G1/8 male Conversion:1Kgf/cm2=14.2PSI 1Bar=14.5PSI
